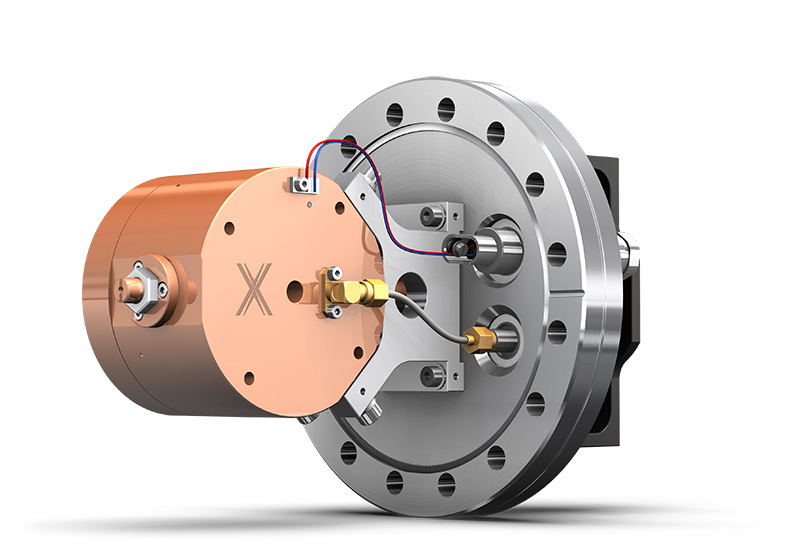

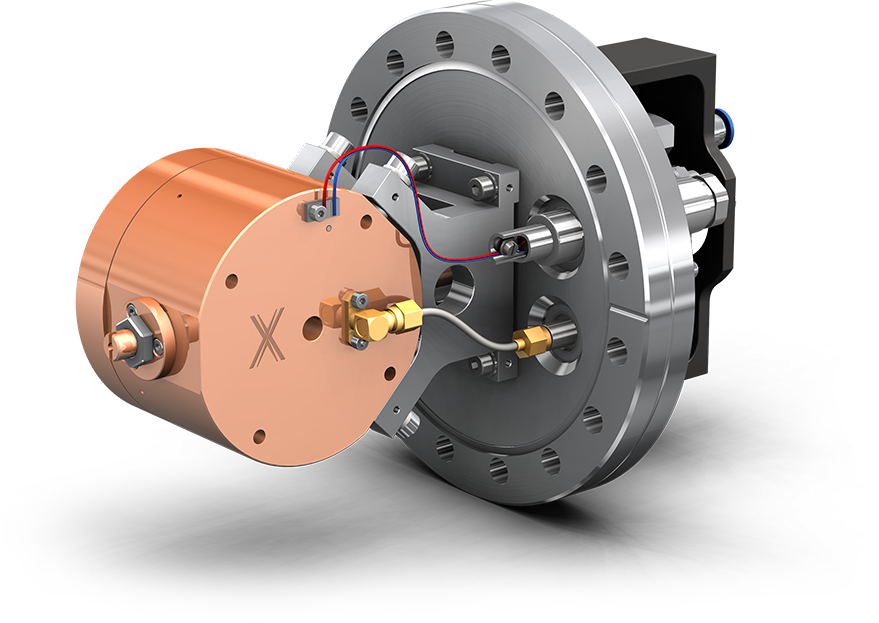

Compression Module
Ultrafast electron techniques for crystallography
Electron pulses spread due to velocity differences. Additionally, space-charge repulsion can stretch femtosecond bunches into picoseconds over just centimeters of drift. The Compression Module reverses this.
An RF cavity operating in the gigahertz range applies oscillating electric fields along the beam axis. Electrons arriving early get decelerated; electrons arriving late get accelerated. The bunch compresses as it drifts downstream - from tens of picoseconds back to sub-100 fs at the sample position.
The cavity achieves 2.5 MV/m on-axis fi eld strength at 100 W input, with Q > 8500 for stable operation. Active phase- and amplitude lock electronics synchronize the RF to your reference signal.
The module ships complete: precision-machined TM-010 mode RF cavity, 100 W amplifi er with phase- and amplitude lock, thermal controller, vacuum housing, and control software. Positioned downstream of Photogun Module or existing electron sources.
Specifications:
- Frequency: 1.5 to 3.5 GHz
- Quality factor: Q > 8500
- On-axis fi eld: 2.5 MV/m at 100 W
- Compression: typicaly 100x, from 10 ps to 100 fs
